Machine Specifications

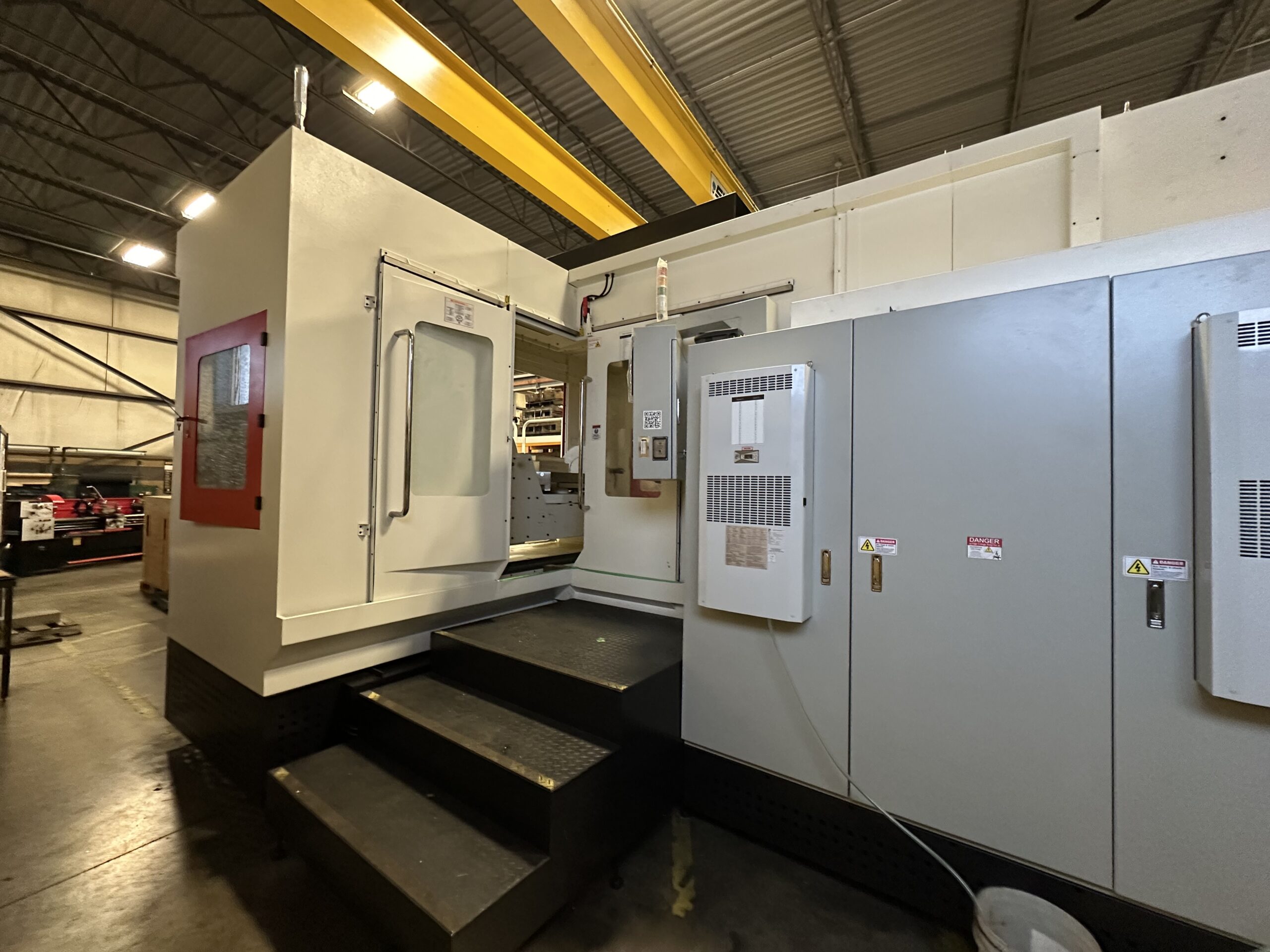

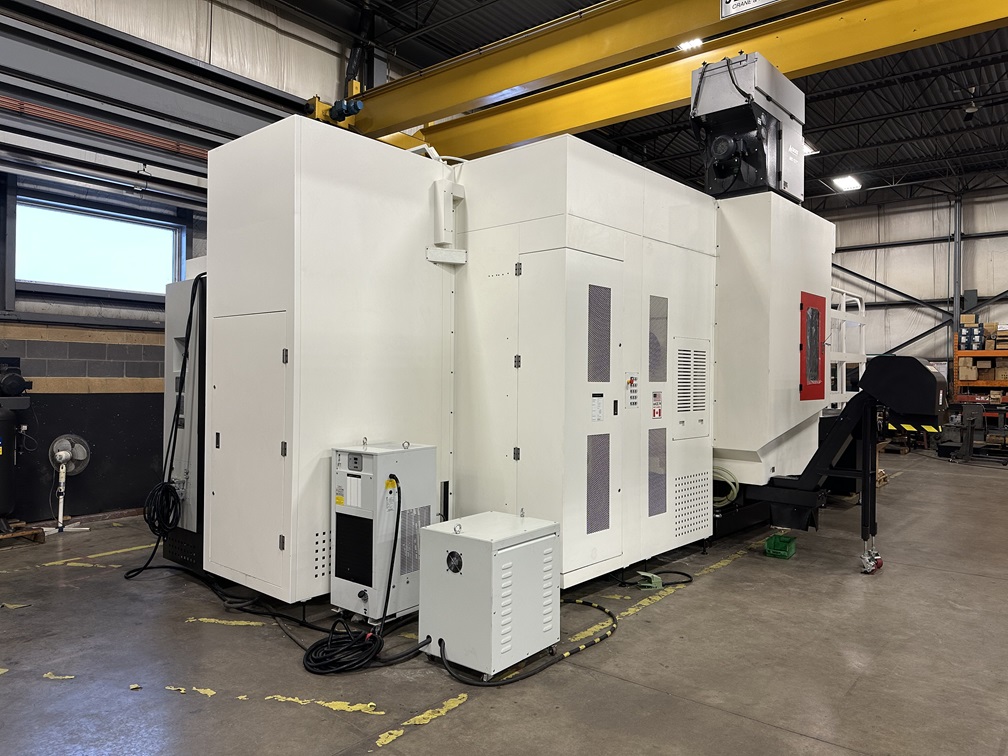

STOCK SPECIAL FHX800 800mm 5 Axis W/2 APC
EMAIL US FOR A QUOTE:

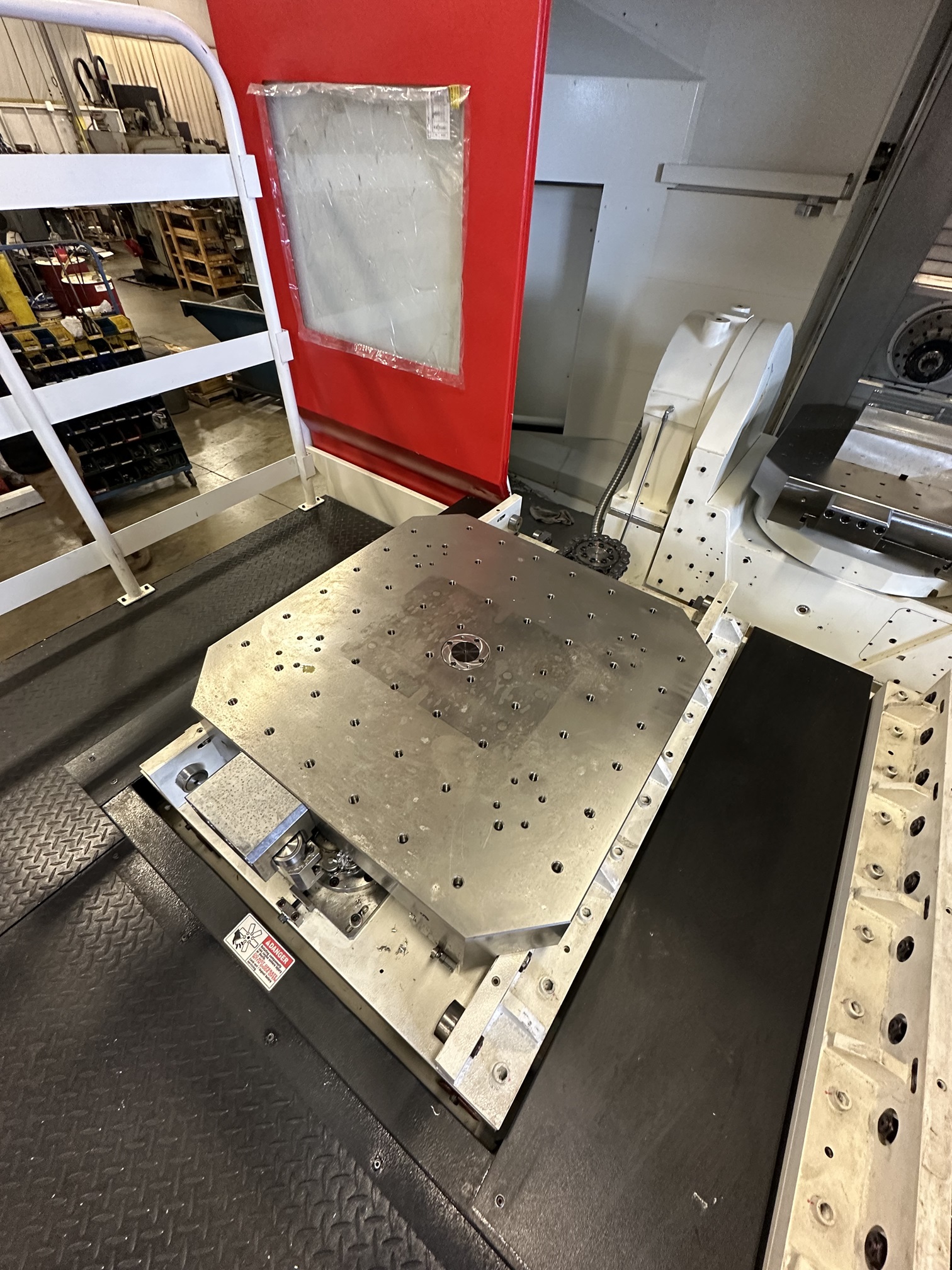

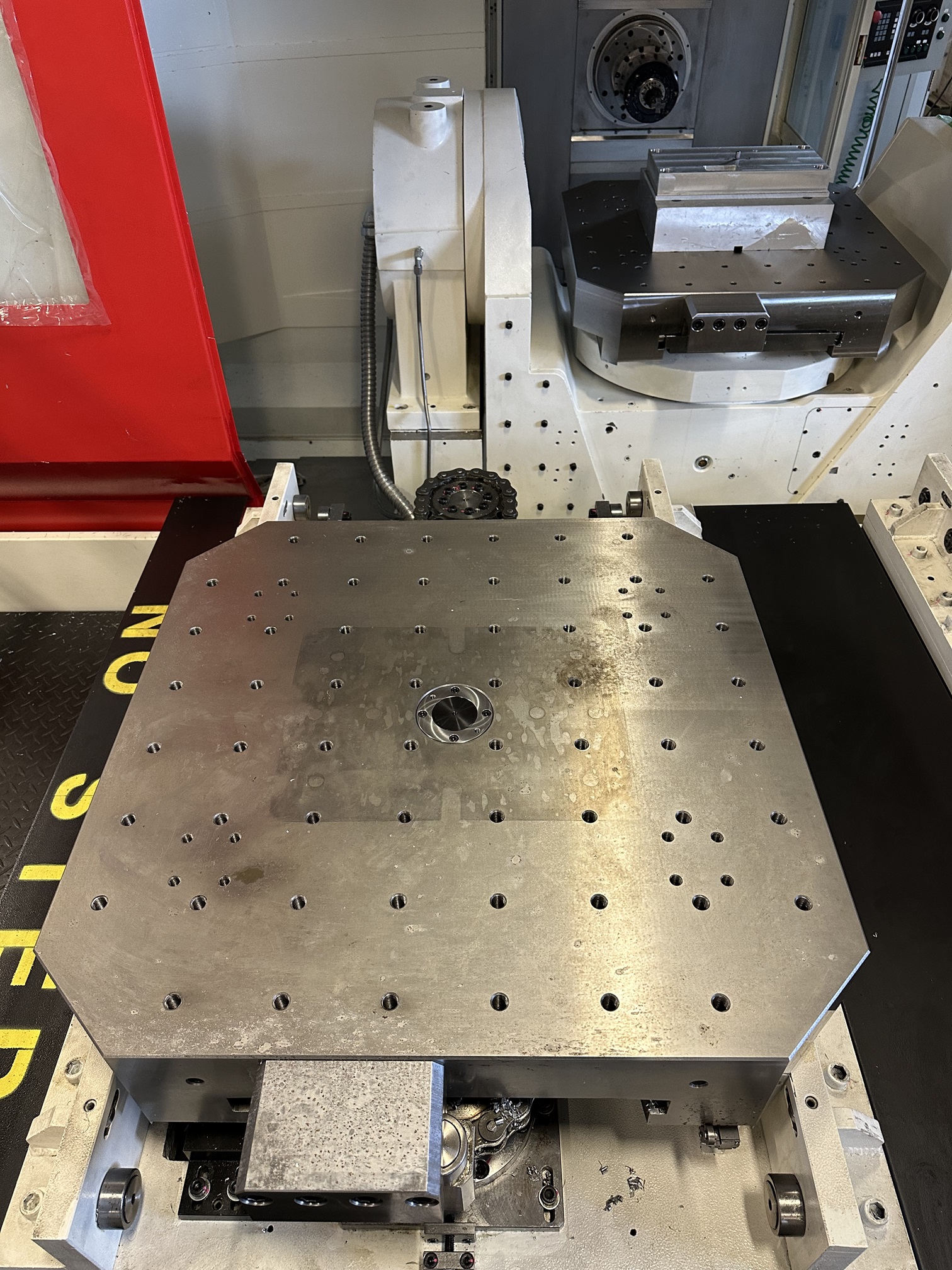

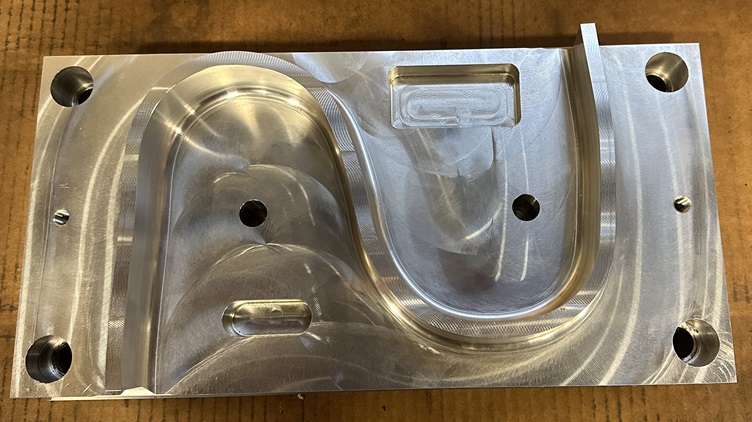

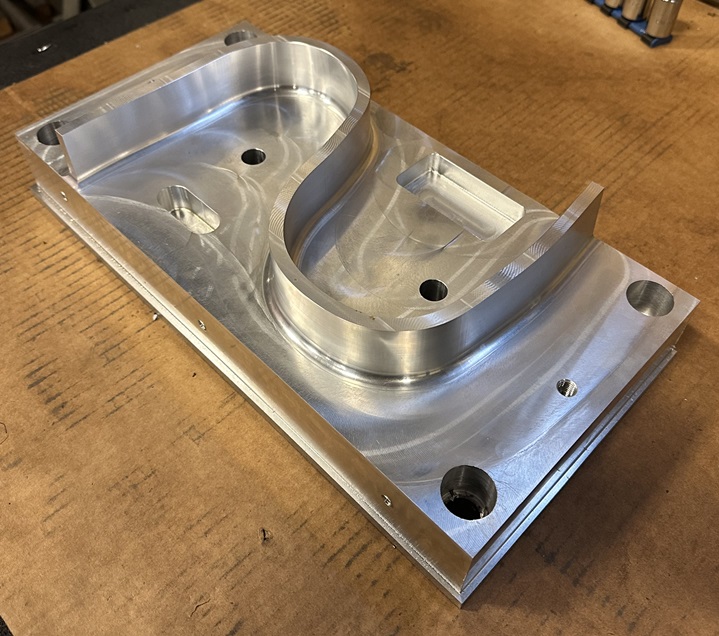

Picture Gallery Below:
| SPECIFICATIONS |
RACER |
|
MODEL: FHX 800 |
|
| CHARACTERISTIC | |
| Footprint |
20’ x 30’ |
| Hieght |
12.7’ |
| Pallet Size |
31.5” x 31.5” |

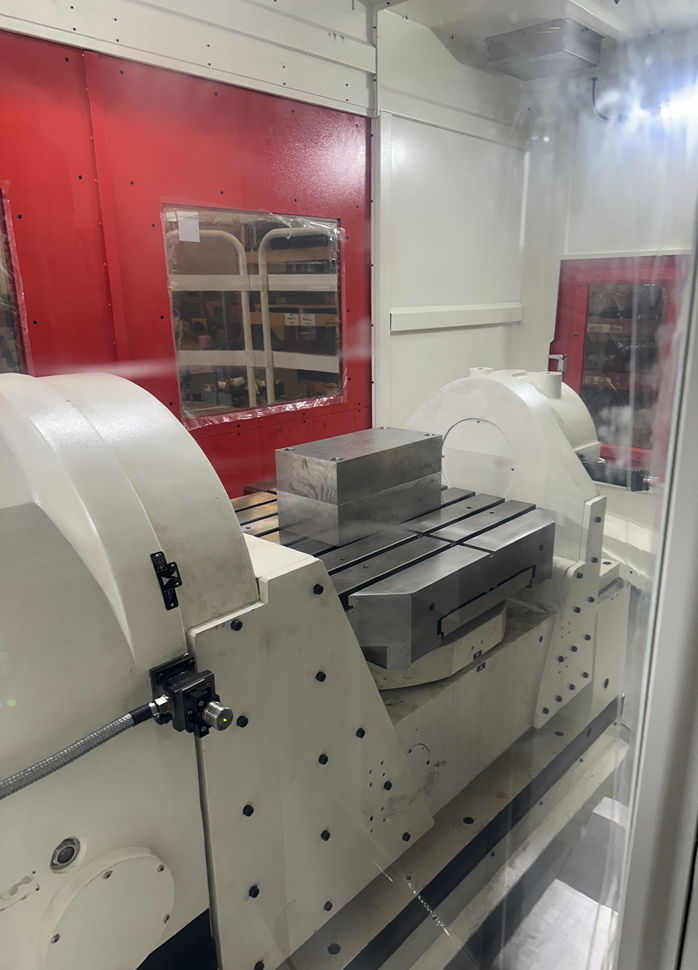

| Pallet Thread Hole Configuration |

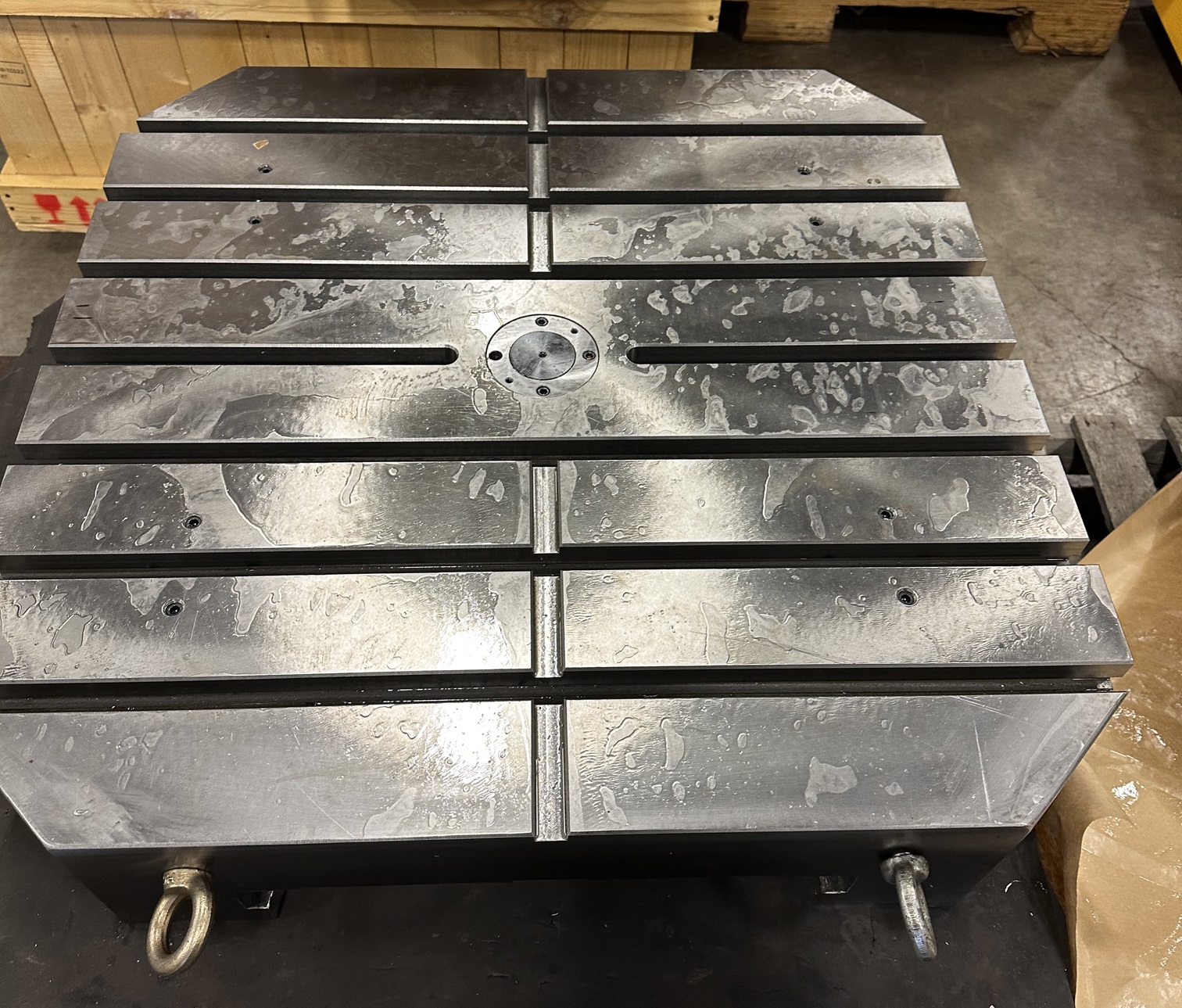

24 – M16 Thread Pitch and T-Slot Table |
| Pallet Threaded Hole Spacing |
100mm |
| ATC Capacity |
64 |
| X-Axis Travel |
42” |
| Y-Axis Travel |
48” |
| Z-Axis Travel |
42” |
| A-Axis Tilt |
-110 °/ 45 ° |
| B-Axis Rotation |
+/- 360 ° (0.001 ° Increments continuous) |
| Table Capacity |
2,200 lbs. |
| Spindle Taper |
HSK-A63 |
| Coolant System |
310 Gallon |
| Motorized Spindle |
Oil Lubrication Type |
| Max Spindle Speed |
12,000 RPM |
| Max Spindle Torque (S1 Duty Cycle) |
36 HP |
| Max Spindle Torque (SA Duty Cycle) |
125 lb-ft |
| X, Y, Z Axes Speed |
950 IPM |
| X, Y Axis Thrust |
1,750 lb. force |
| Z Axis Thrust |
2,200 lb. force |
| Coolant High Pressure |
500 PSI |
| Accuracy (X, Y, Z Axes) |
+/- 0.0005 Full Travel |
| Accuracy (A, B Axes) |
+/- 10 arc seconds |
| Repeatability (X, Y, Z Axes) |
+/- 0.00025 |
| Repeatability (A-Axis) |
+/- 5 arc seconds |
| Repeatability (B-Axis) |
+/- 5 arc seconds |
| FEATURES: | |

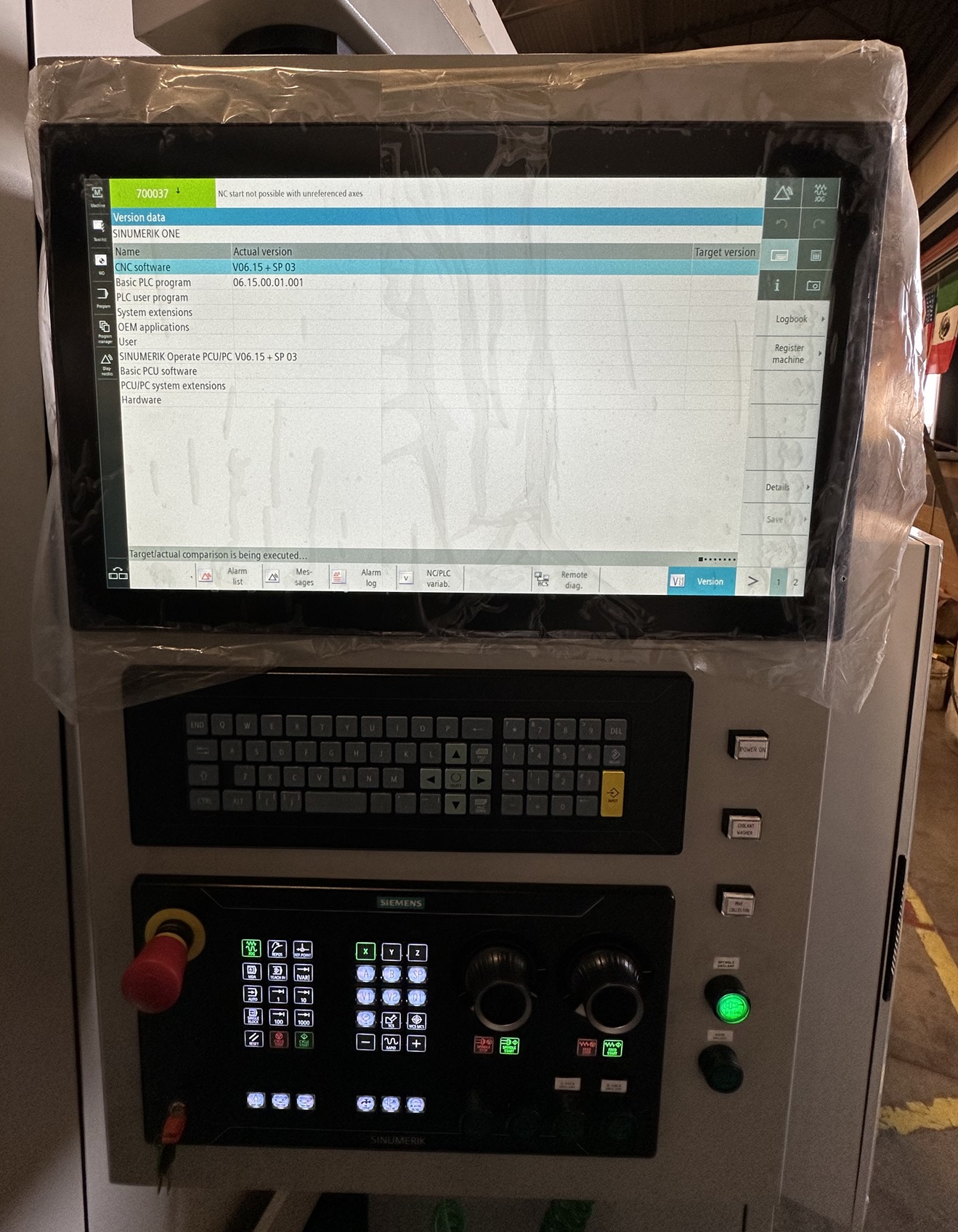

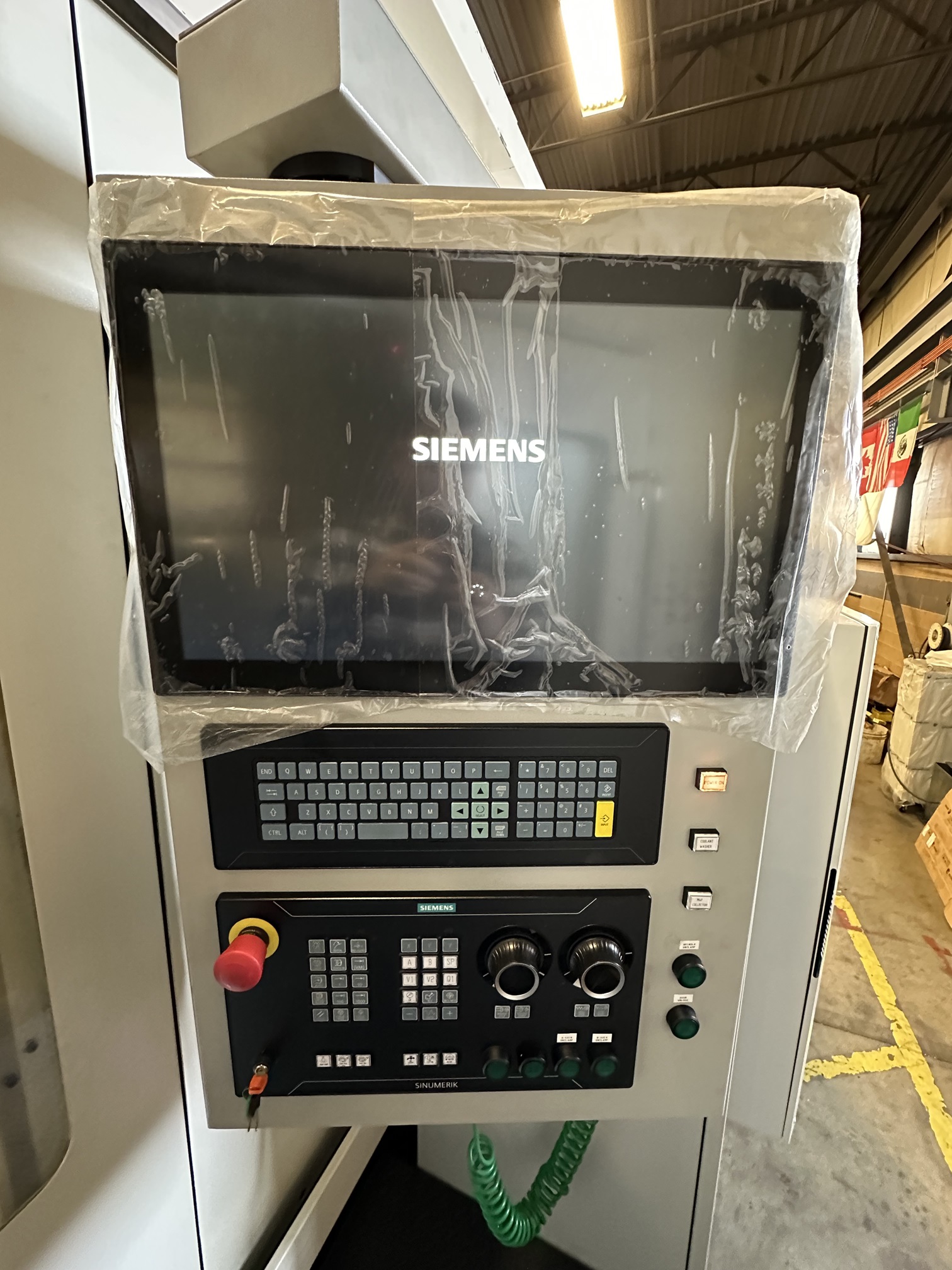

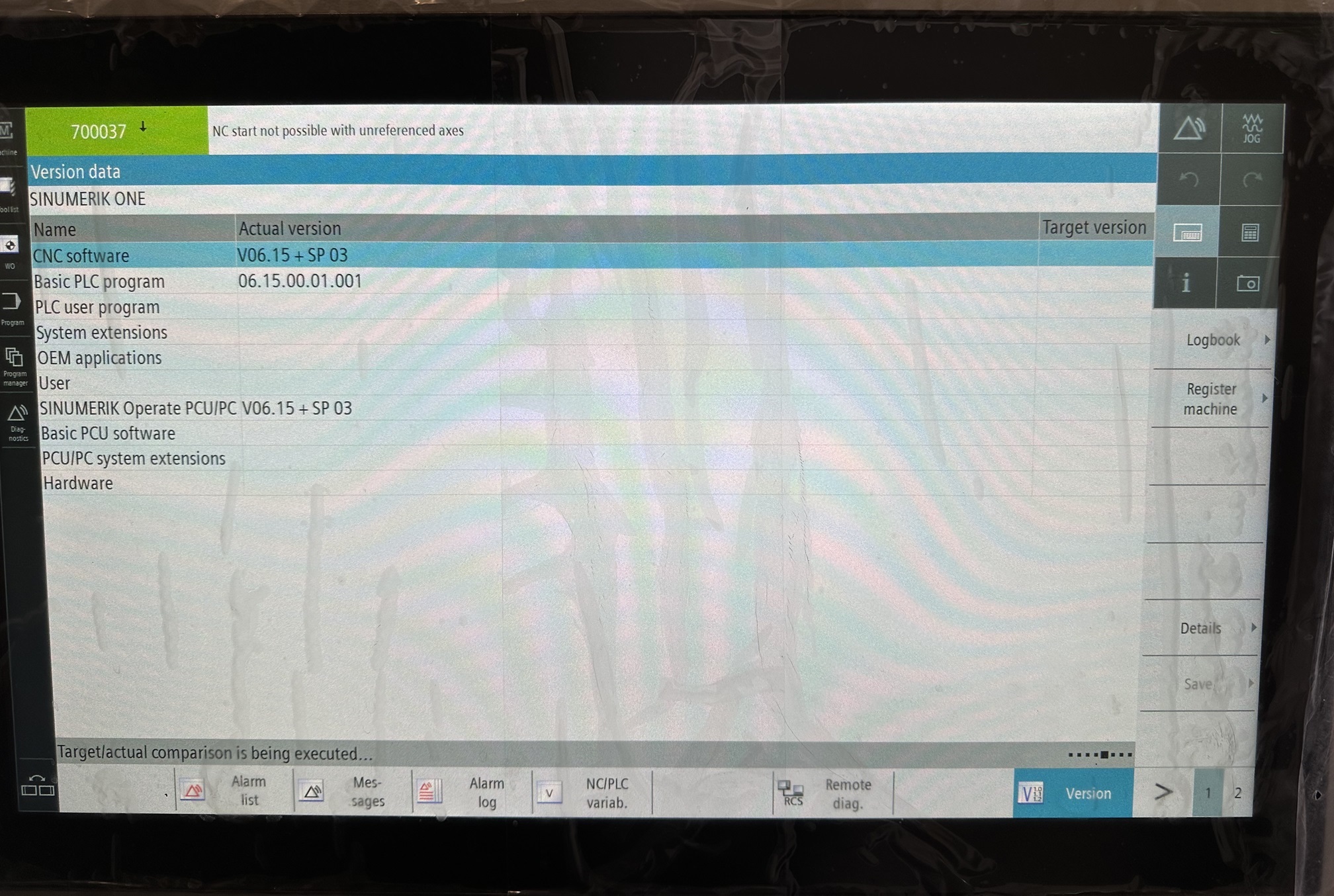

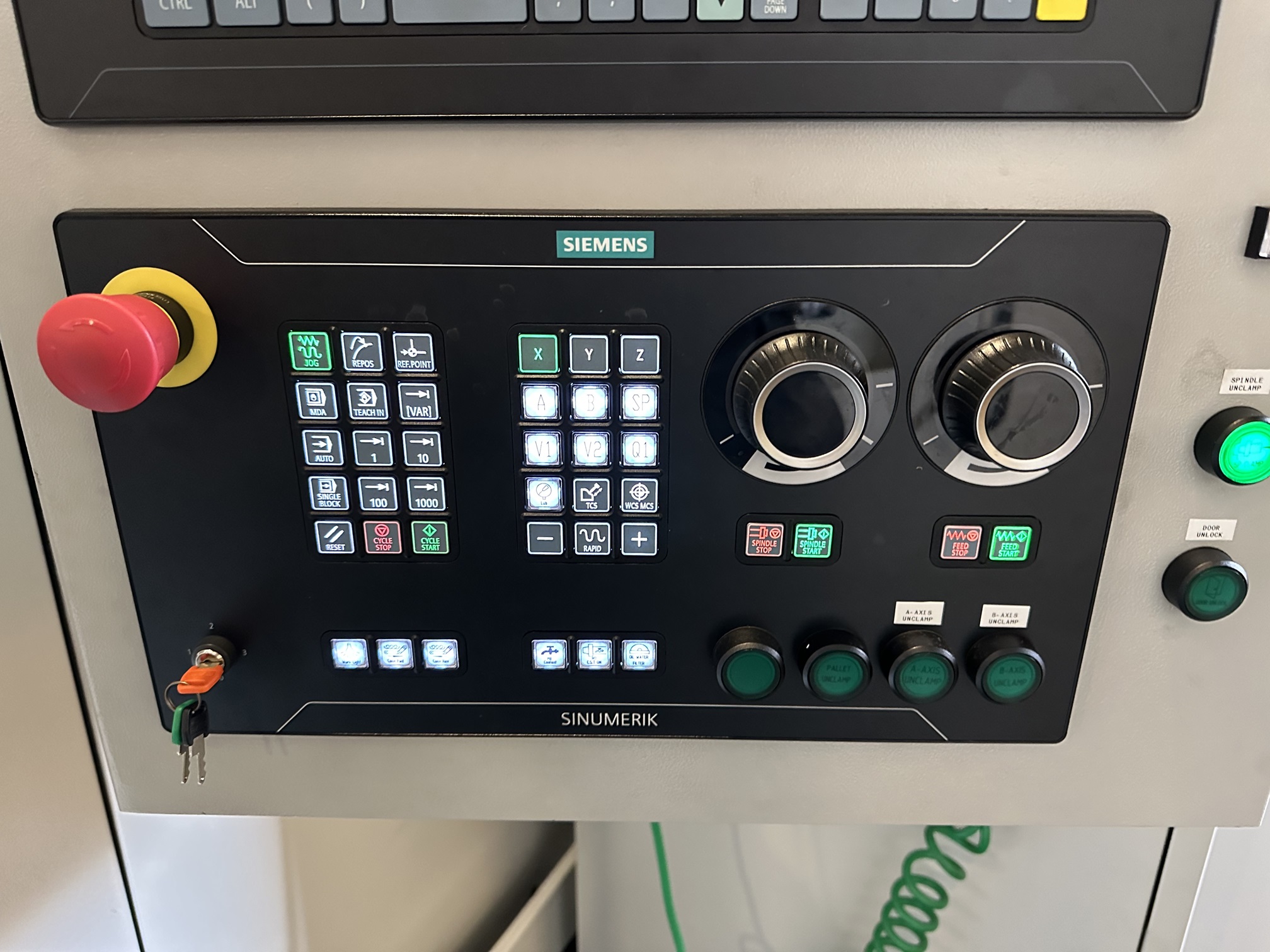

| Siemens Sinumerik ONE controller | |
| – with haptic feedback Rotary knobs (TRAORI, Cycle800) | |

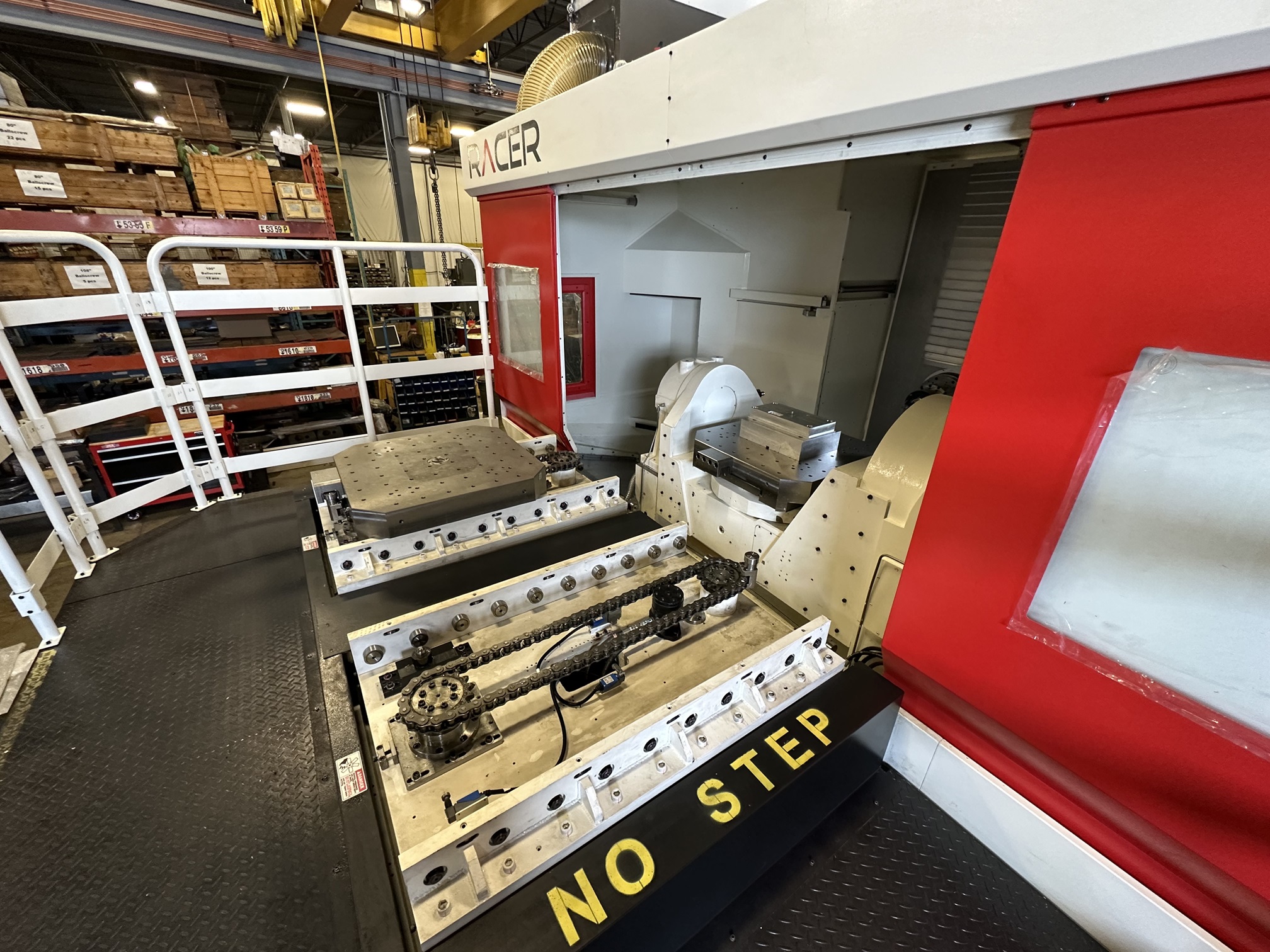

| Two Position Pallet Changer | |
| – Included 2 with hole pattern, 2 with T slots. | |
| Renishaw Scales 5 micron resolution | |
| Renishaw NC4 Tool Length Setter | |
| Renishaw RMP600 Part Probe | |
| Renishaw Rotary Axis Set | |
| 64 tool ATC with Air Blast | |
| 4 Stage AeroEx Mist Collector | |
| 500PSI Coolant through with filter | |

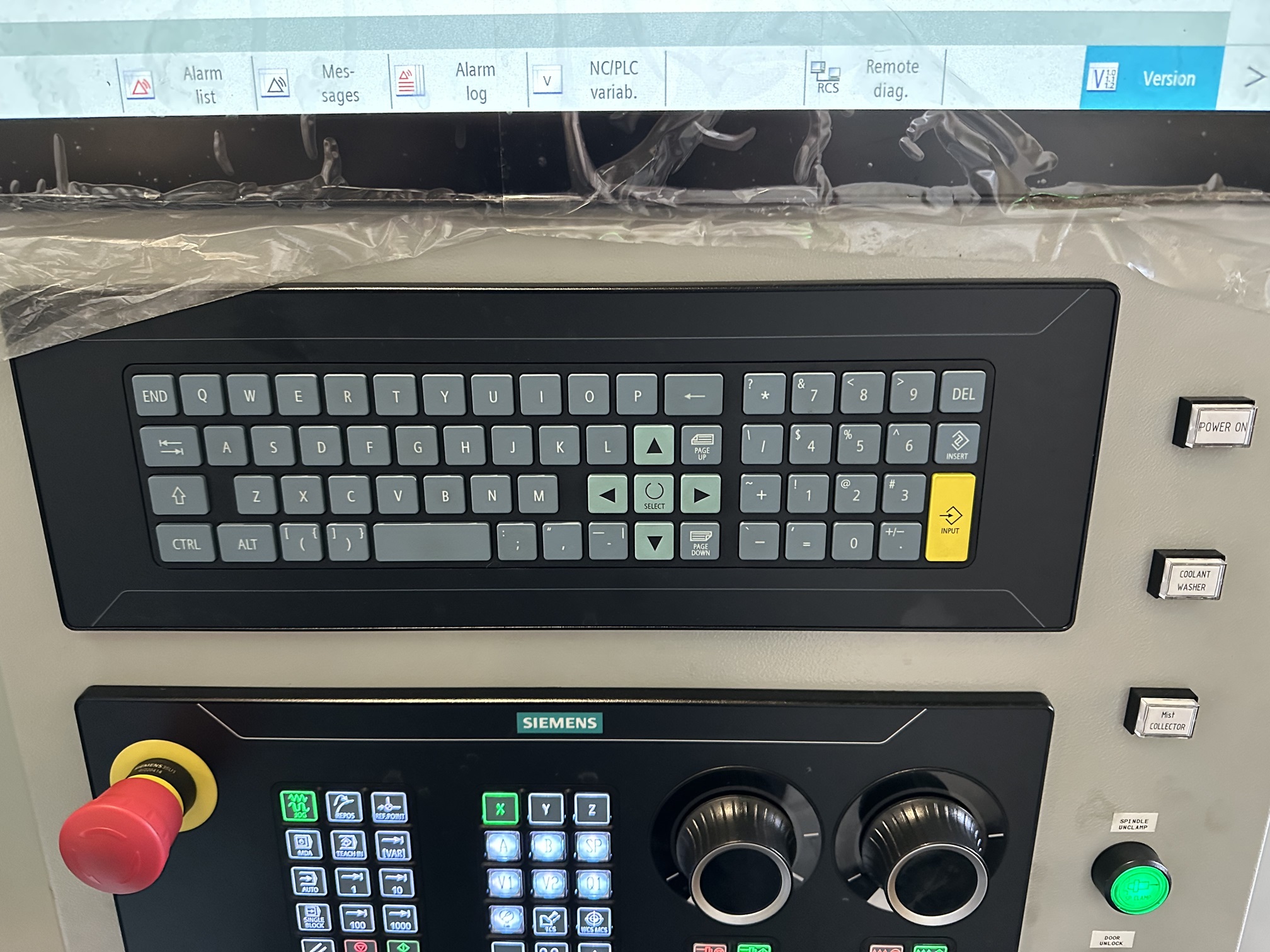

| Siemens HT2 Handheld Pendant | |
| Air Hose with Nozzle | |
| Flood Coolant System | |
| Hydraulic System | |
| Pneumatic System | |
| Electrical 480 volts/3/60 Hz | |

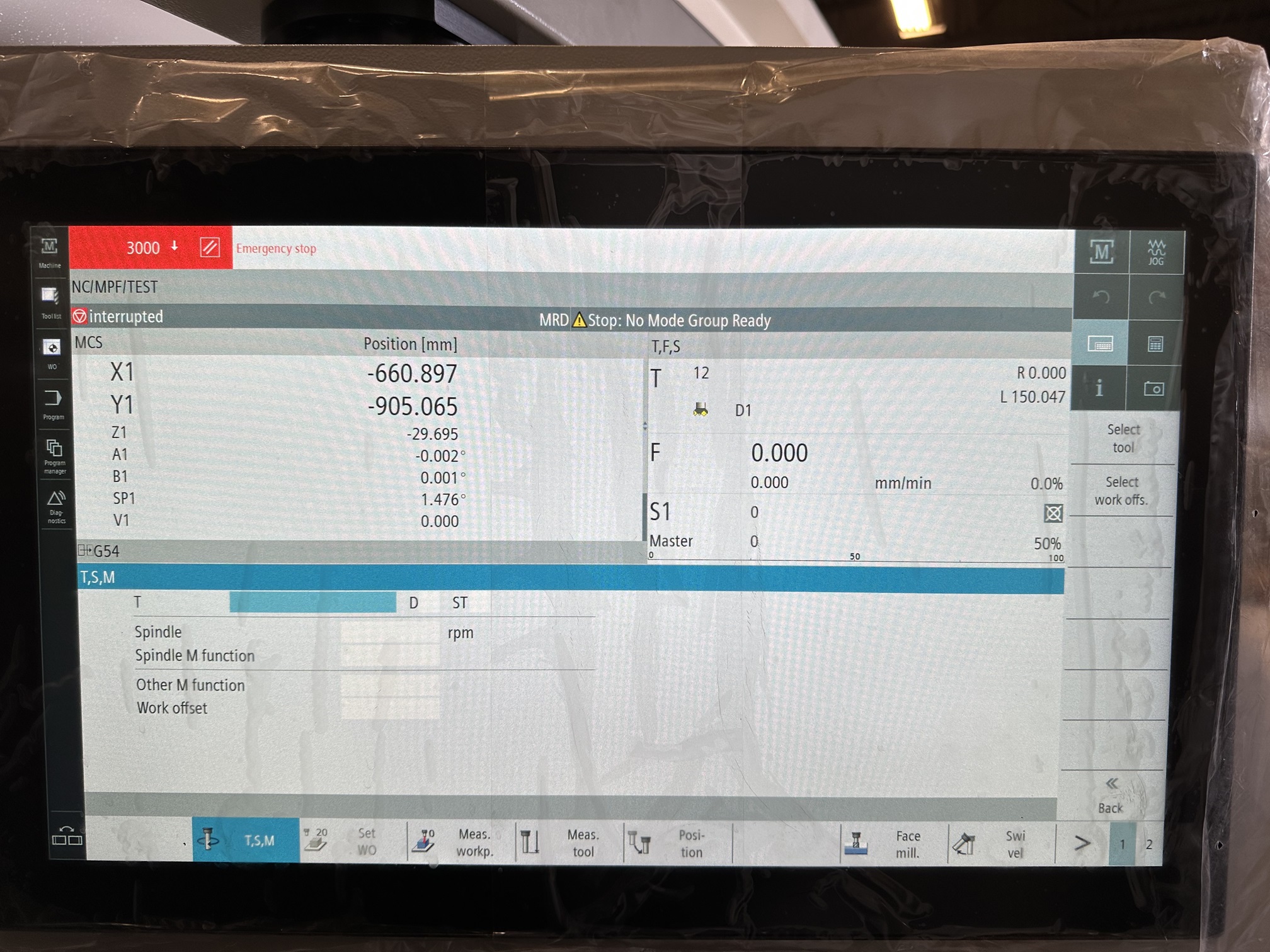

| 19″ Siemens Touch Monitor | |
| USB Connection | |
| Ethernet Port | |
| Work light | |
| Hour Meter (Digital) | |
| Chip Cart | |
