Machine Specifications

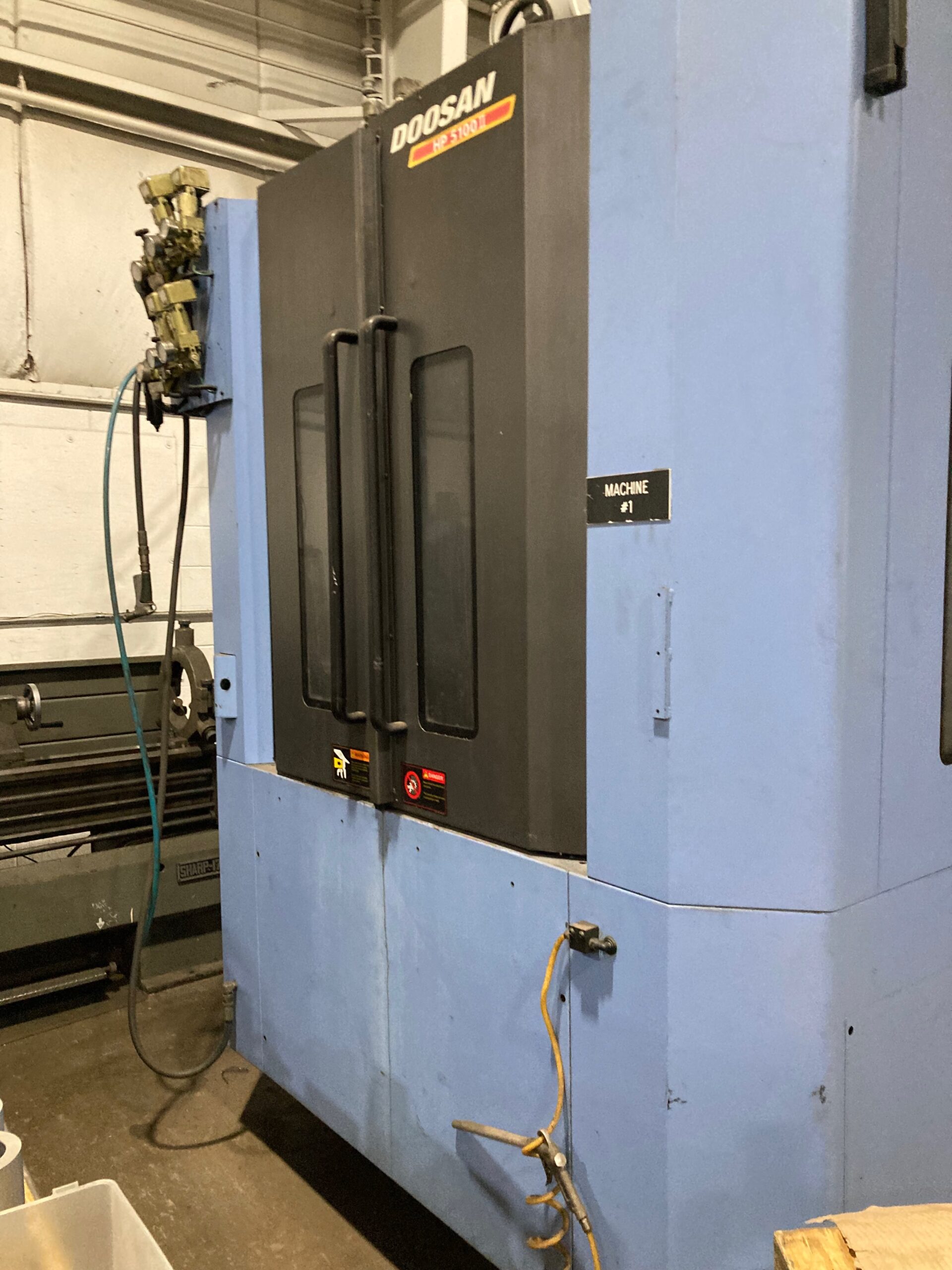

2015 Doosan HP 5100 II
Horizontal Machining Center
EMAIL US FOR A QUOTE:
GALLERY OF PICTURES BELOW ↓
| Control Type | Fanuc 31i-MB |
| #Axis | 4 |
| Pallet Length | 19.7″ |
| Pallet Width | 19.7″ |
| Pallet Capacity | 1,100 pounds |
| Pallet Indexing (B-Axis) | 0.001° |
| X-Axis Travel | 33.5″ |
| Y-Axis Travel | 27.6″ |
| Z-Axis Travel | 29.5″ |
| Rapid Traverse Rate
(X/Y/Z) |
2,362 ipm |
| Spindle Taper | HSK 63 |
| Spindle Speed | 14,000 rm |
| Spindle Motor (HP) | 30 hp |
| Tool Changer Capacity | 60 |
| Coolant Through
Spindle |
yes |
| Machine Dimensions | 212″ X 110″ x 119″ |
| Machine Weight | 33,100 pounds |
| Equipped With: | |

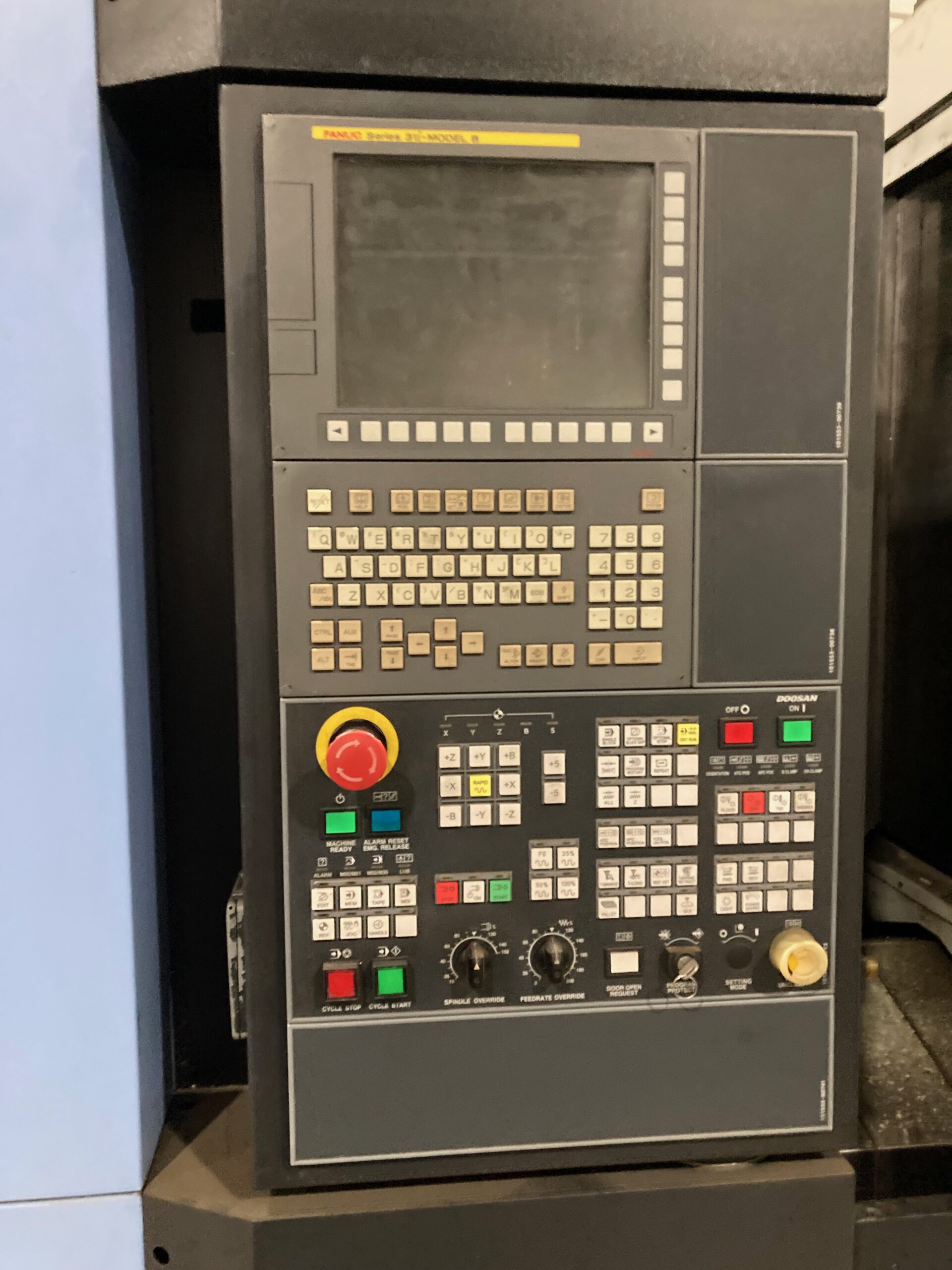

| – Fanuc 31i-MB Control

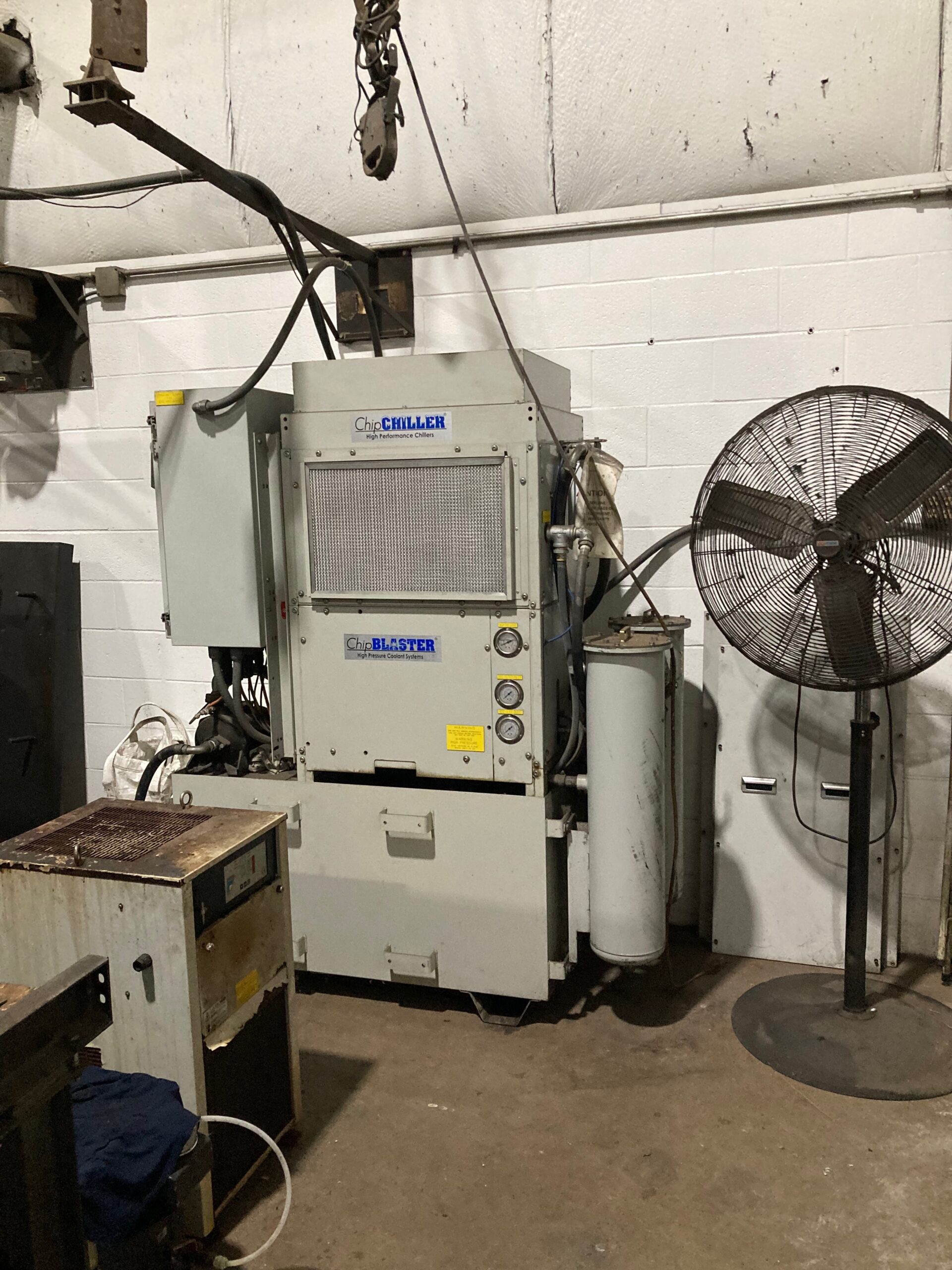

– Hydraulic Clamping – Chip Blaster (model JV-40) Hi-Pressure CTS – Chiller Unit – Coolant Tank & Pumps – Chip Conveyor – Embedded Ethernet | RS232 Port | USB Port – Tool Load Monitoring – Manual Guide i (conversational programming) – Handheld Remote Manual Pulse Generator (MPG) – Custom Macro B – Rigid Tapping – Embedded Ethernet – USB – 200 Tool Offset Pairs – Tool Life Management – Tool Offset Memory C – Graphic Function – AI Contour Control II – Machining Condition Selecting Function – Fanuc 31i-MB Control – Hydraulic Clamping – Chip Blaster (model JV-40) Hi-Pressure CTS – Chiller Unit – Coolant Tank & Pumps – Chip Conveyor – Embedded Ethernet | RS232 Port | USB Port – Tool Load Monitoring – Manual Guide i (conversational programming) – Handheld Remote Manual Pulse Generator (MPG) – Custom Macro B – Rigid Tapping – Embedded Ethernet – USB – 200 Tool Offset Pairs – Tool Life Management – Tool Offset Memory C – Graphic Function – AI Contour Control II – Machining Condition Selecting Function |
|
